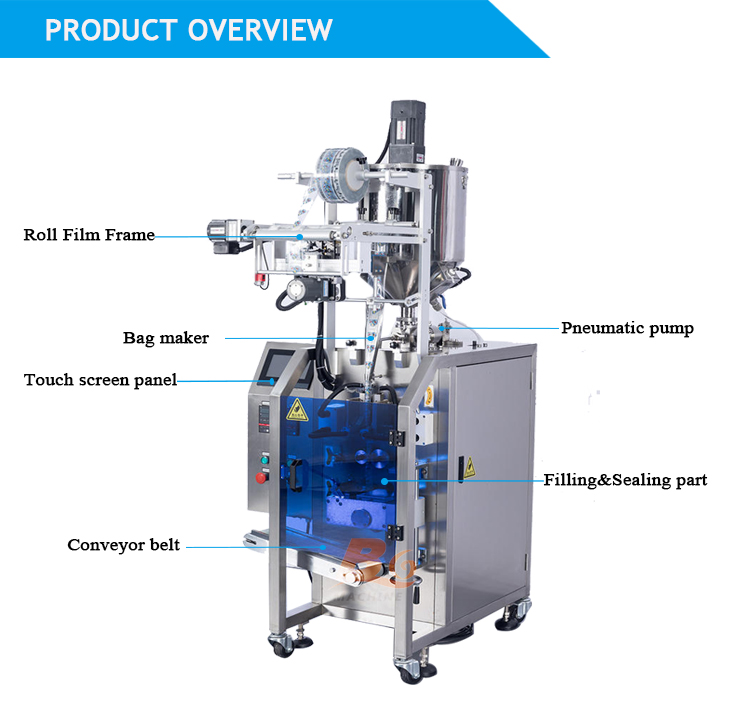

Pouch packing machine for sauce jelly liquid drinks

* Low input high gain, high speed and efficiency

* Famous brand PLC control system, large touch screen, convenient to operate

* Film drawing down system controlled by servo motor,

to minimize the loss with complete automatic warn protection function

* High automatic, it can complete feeding ,measuring, filling, sealing, date printing, filling nitrogen, counting, transporting the finished products once matched with elevator, measuring device.

inquiry

Description


Modle	GY-100YSD	GY-160YSD
Film Width	Max.320MM	Max.420MM
Bag Length	30-150MM	40-170MM
Bag Width	30-100MM	40-120MM
Roll Diameter	Max.320MM	Max.320MM
Film Thickness	0.04-0.12MM
Packing Speed	40-60Bag/Min	40-60Bag/Min
Power	220V50/60HZ 2.6KW	220V 50/60HZ 2.6KW
Machine Size(mm)	(L)1005* (W)850*(H)1241 MM	(L)1217* (W)1015*(H)1343 MM
Machine Weight	About 620KG	About 650KG
Option Device	Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device.

The paste packing machine is stainless steel material which comply to food safety grade and rust-proof, equip reliable performance electric & mechanism compoment.
High packing capacity and speed, high efficient and lower your labour cost.>>What materials can this equipment pack?The machine is suit for
automatic filling and packing liquid/paste/sauce/cream item, such as milk, juice honey, hair shampoo, tomato paste, salad dressing, jam ect.
The machine adopt the pneumatic pump dosing unit which have the machine advantage of suit for viscous liquid item with high efficient and reliable performance.
The most important is the machine equip with small horizontal ribbon blender mixing machine, this will make the machine much suit for seasoning paste/sauce,
such as chilli paste, for the mixing machine will have the paste evenly packaged with less deposite.
