Horizontal hffs Pillow Flow Popsicle packaging machine

Description

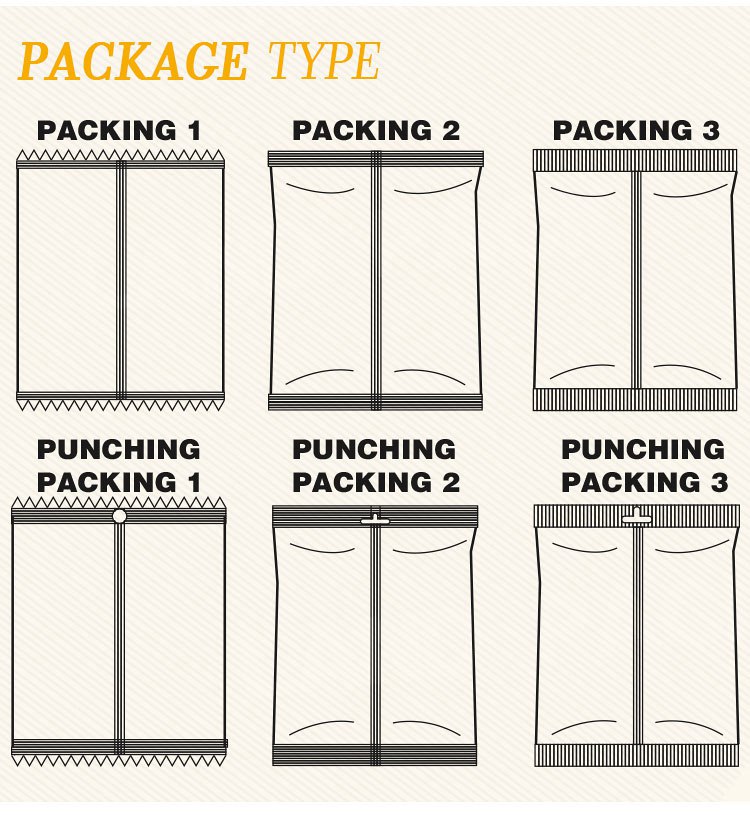

Packing Bag Style Optional:

Packing Samples :

Detailed Images

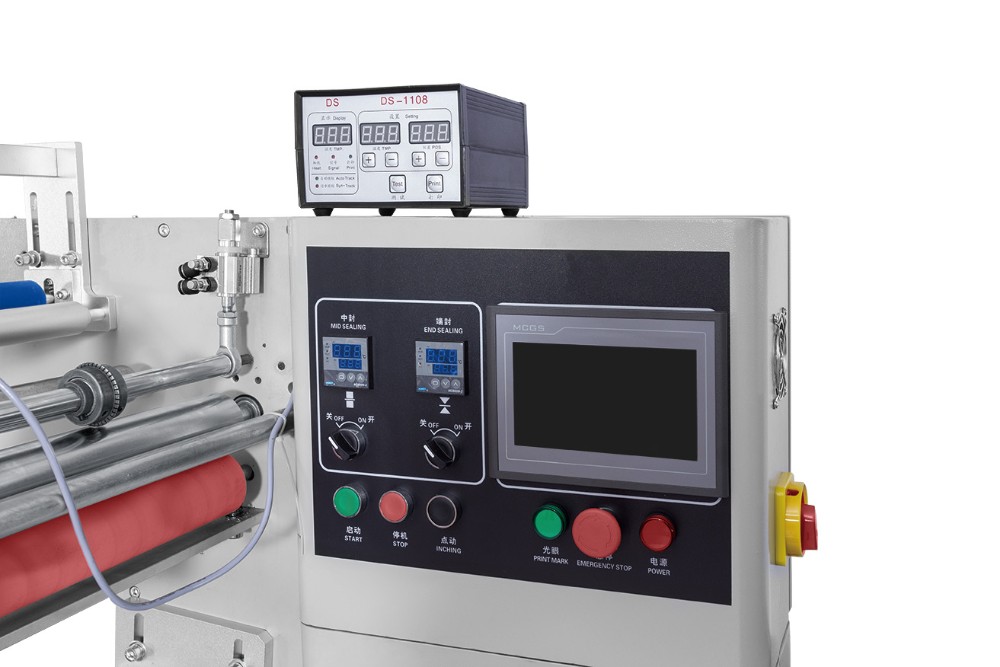

Easy Control Touch Screen

7Inch Touch Screen ,Easy Operation and Multiple language For Choice.

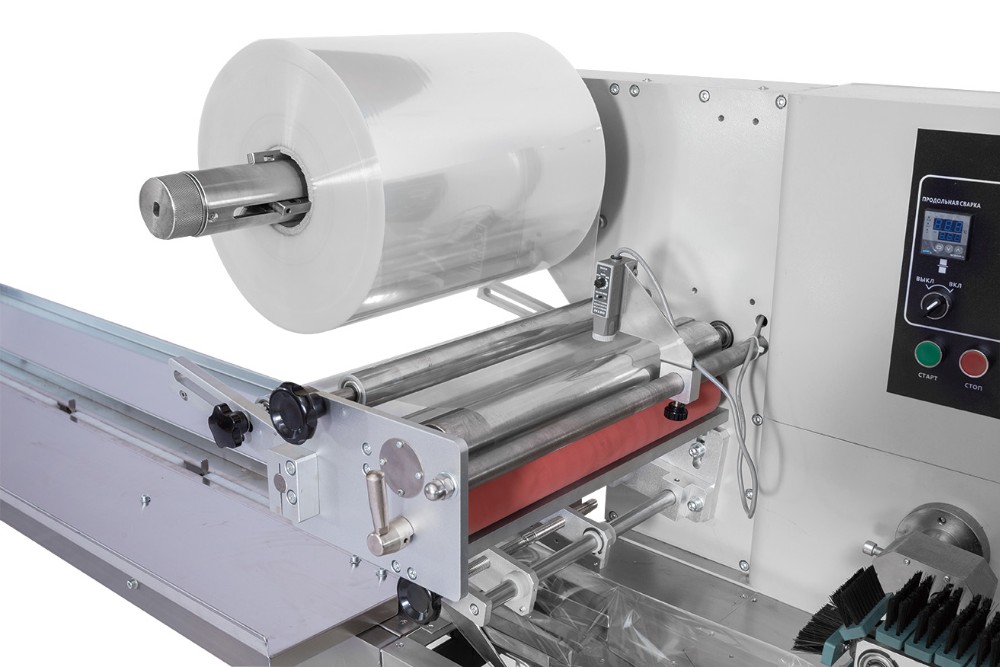

Stable and simply roll structure enable roll film running smoothly

Stable and simply roll structure enable roll film running smoothly

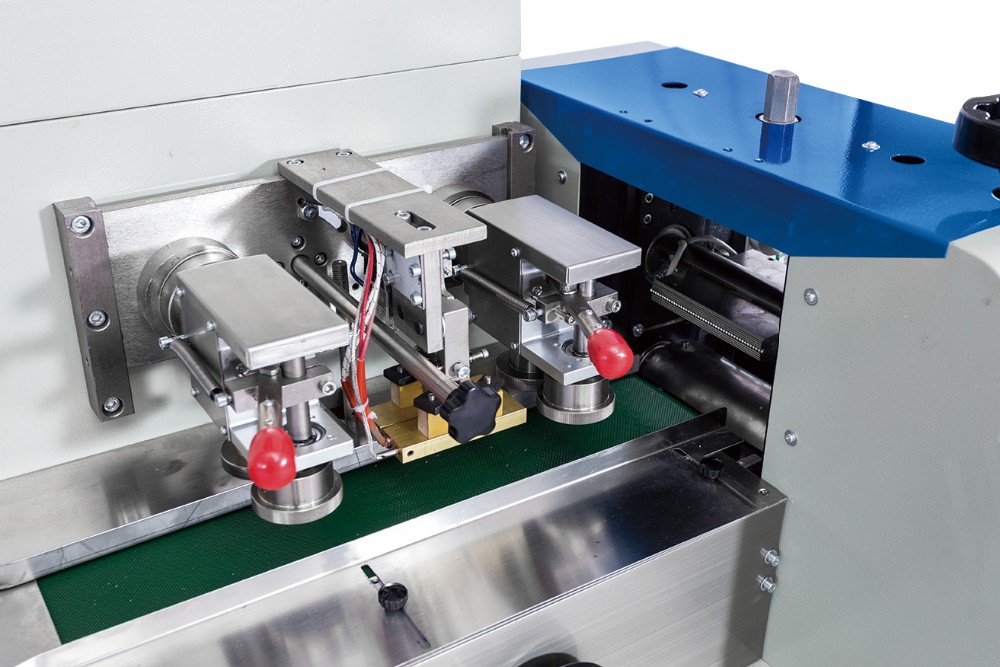

Hot Pressing Middle Seal Area

 Independent PID temperature control ,heating the double turntable seal ,sealing the back of the packaged product,guaranteed sealing .

Full 304SS Conveyor

 Machine conveyor is made of 304 stainless steel ,Health and Safety Durable feed by manually or automatically

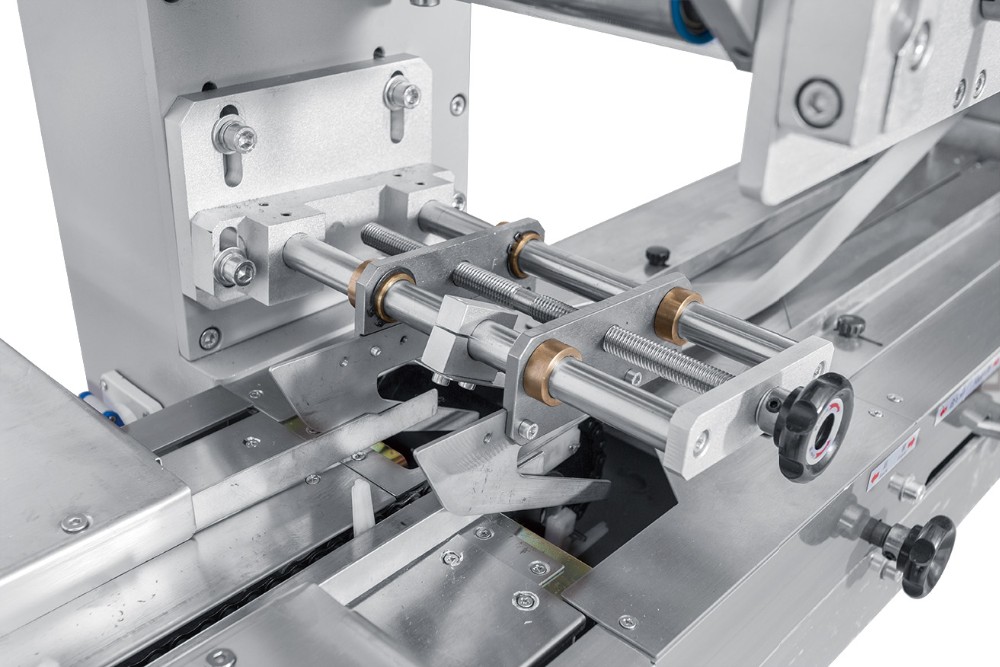

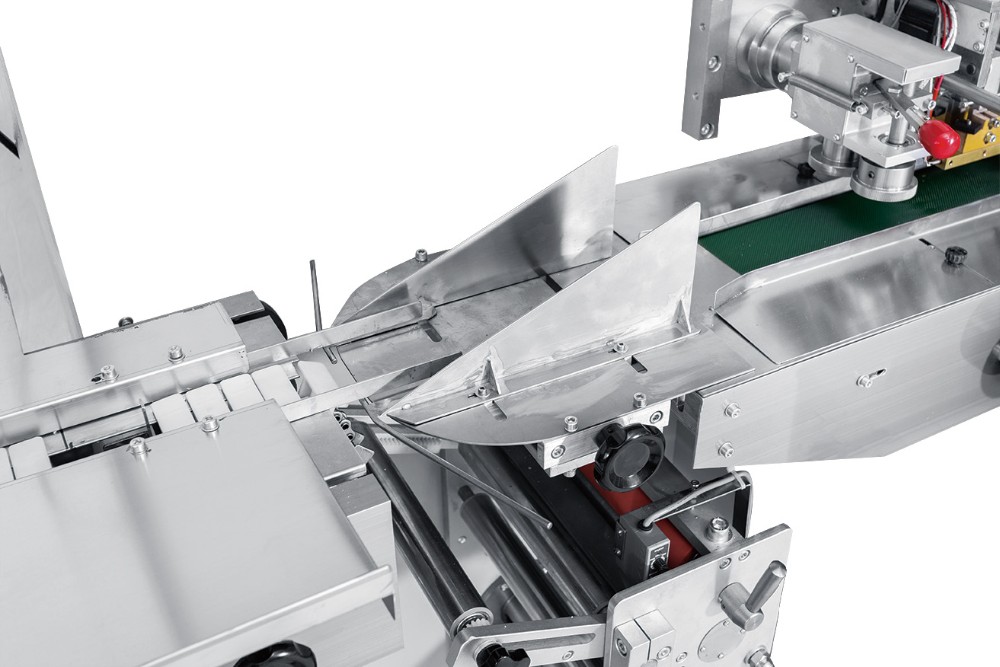

Bag Making Device

Automatic roll film bag shape ,flexible and convenient

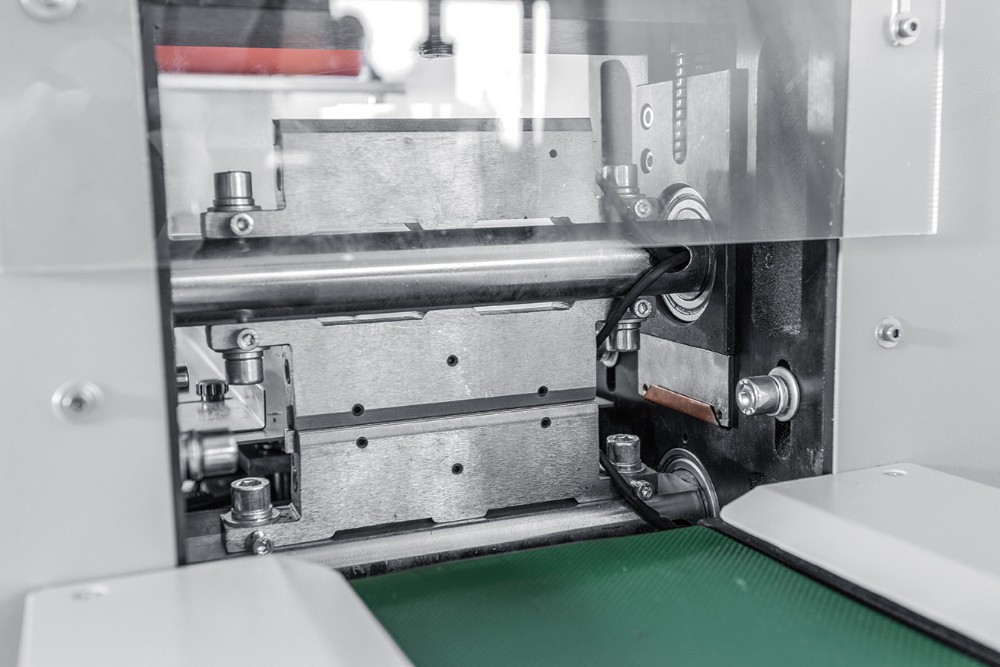

End Seal Cutting Area

Rotate the constant temperate heat sealing cutter to seal the front and rear ends of the packaged product  and avoid curling or llopholes in the sealing position.

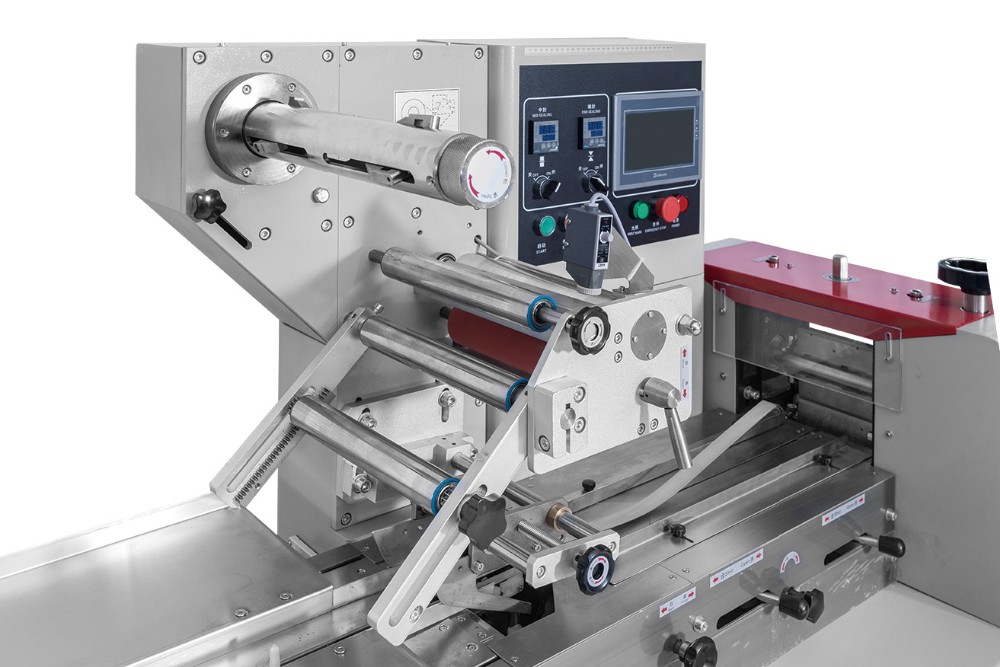

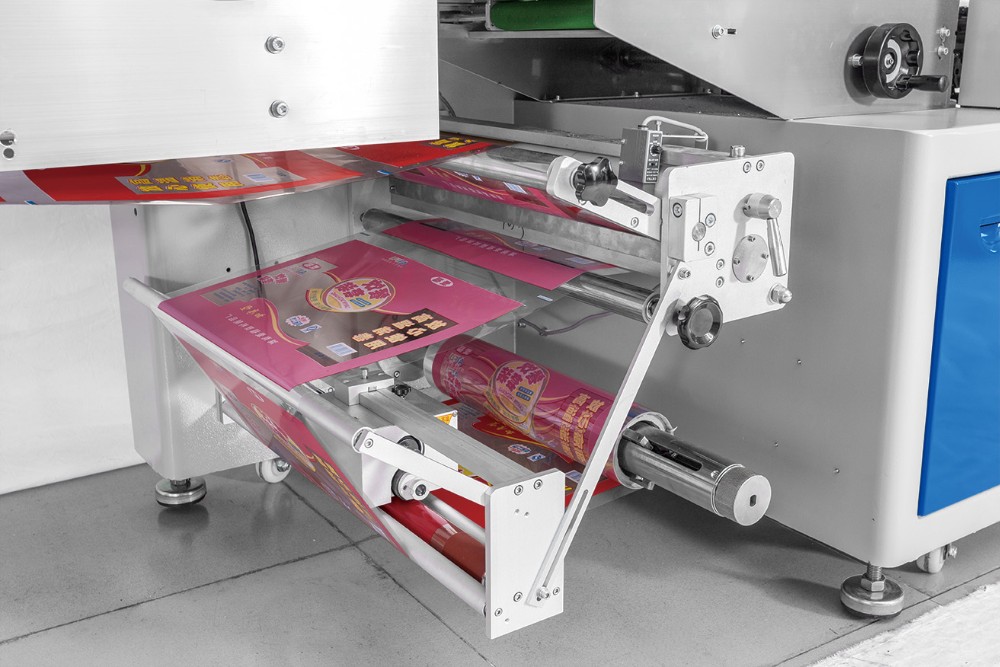

Linkage Roll Film Shaft

 Coordinating the film pulling process with Multi-linkage roll film shaft ,adapt to more film material,film rolling process is smoother.

Model	GYP-250	GYP-320	GYP-350	GYP-250X	GYP-350X	GYP-600X
Bag Length	65-190/120-280mm	65-190/120-280mm	90-220/150-330mm	65-190/120-280mm	65-190/120-280mm	150-450mm
Bag Width	30-110mm	50-160mm	50-160mm	30-110mm	50-160mm	80-280mm
Product HeightMAX.	55mm	55mm	60mm	55mm	70mm	100mm
Film Roll Dia. MAX	320mm
Film Width MAX.	250mm	320mm	350mm	250mm	350mm	600mm
Packing Speed	40-230 bag/min	40-230 bag/min	40-180 bag/min	40-230 bag/min	40-230 bag/min	40-150 bag/min
Power	220V AC 50HZ,2.4Kw	220V AC 50HZ,2.6Kw	220V AC 50HZ,2.6Kw	220V AC 50HZ,2.4Kw	220V AC 50HZ,2.6Kw	220V AC 50HZ,2.8Kw
Size mm	3770L×670W×1450H	3770L×720W×1450H	4020L×770W×1450H	3920L×670W×1400H	4020L×720W×1450H	4020L×920W×1450H
Net Weight	500KG	550KG	600KG	500KG	600KG	900KG
Packing Film	Complex film(OPP/CPP,OPP/PE,PET/PE,Aluminumfoil,PE/PE etc)
optional	Air Filling device/Linking device/Ethyl alcohol device
