Automatic Egg tray production line

Our egg tray machine can make all pulp trays such as, egg tray, wine tray, fruit tray,Electronic components packaging trays, bottle tray etc.We have devoted to production of small-sized, medium-sized, large-sized,energy-saving, efficient, multi-functional and simplified pulp model machine and the practical utilization of drying technology.

Description

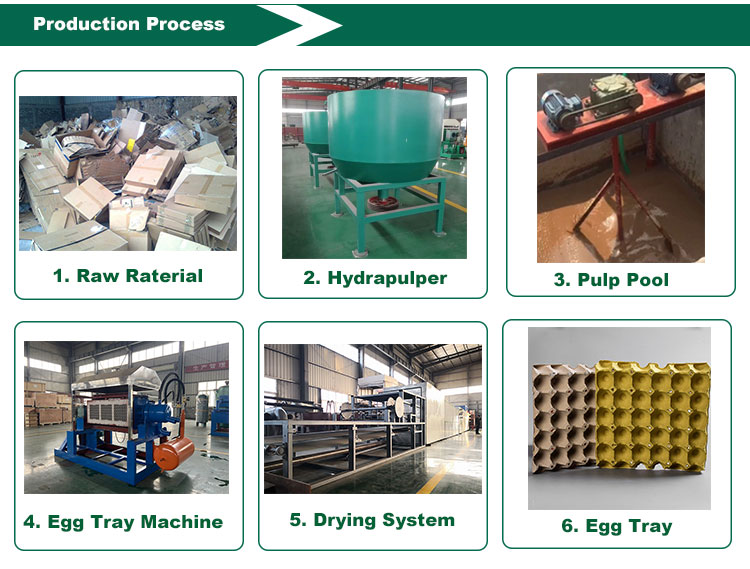

Production Process

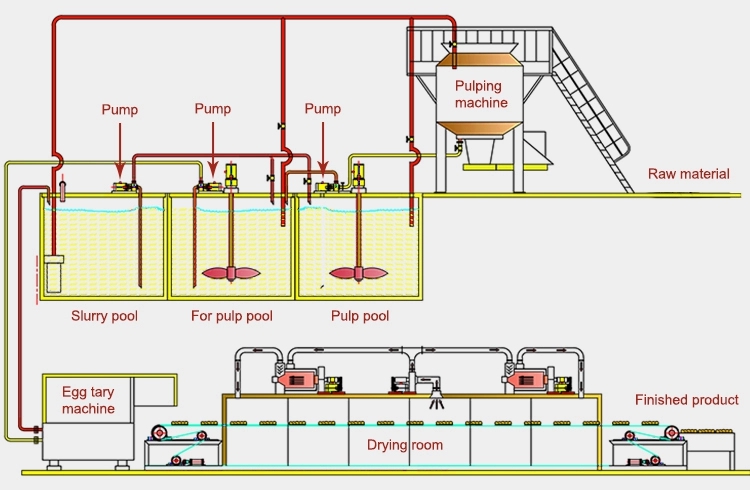

The whole automatic egg tray making machine egg tray carton production line is consist of the egg tray pulping system, egg tray forming system, egg tray drying system, and egg tray packing system.

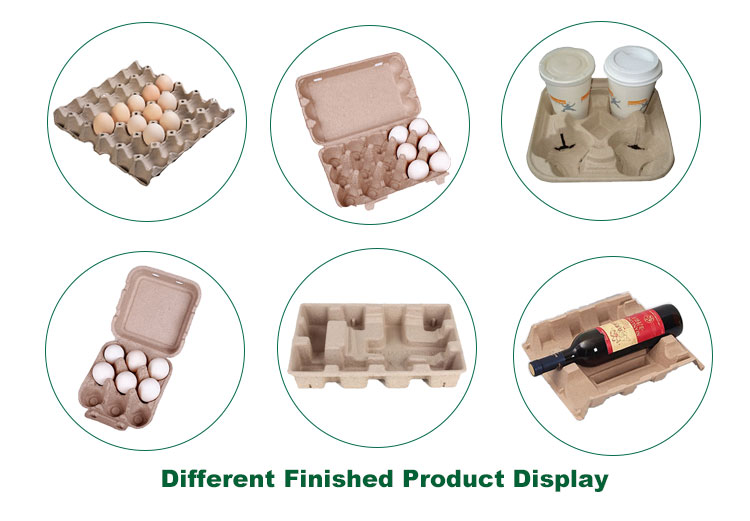

After changing different molds, the egg tray machine can produce different products such as egg tray, egg carton, paper cup tray, industrial tray, wine tray and shoe tray.

Detaled infomation

Pulper


Auto feeding and auto give water.
Material:carbon steel Power :45kw
Capacity :5m³

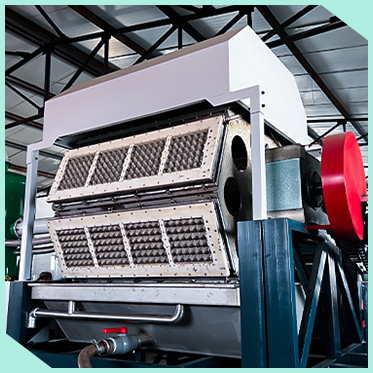

Forming machine

The parts connected with pulp are all 304# stainless steel
Capacity :6000pcs/h
5molds*8faces
Power:15.5kw
With automatic oil feeding system and automatic cleaning
mould

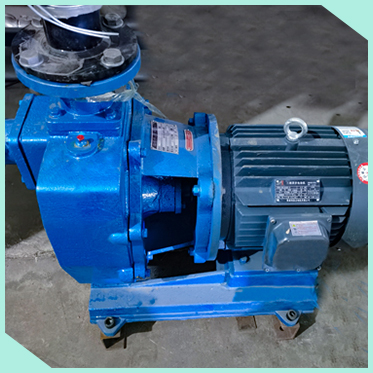

Self-priming pump


Power:5.5kw
Usage: removal the water of vacuum tank

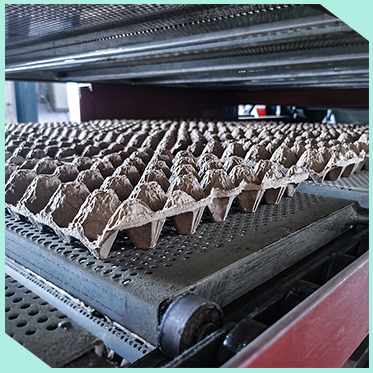

Drying systerm


Use geating fuels, such as diedel oil, coal, LPGS, GAS, etc to dry the formeg wet blanks.

Self-cleaning water pipe

Metrial: the 304 stainless steel material is corrosion resistanct and has a long service life
automatic washing mold pipe:  easy to demoulding and reduce labor.

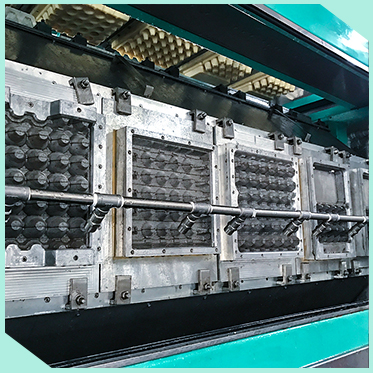

Die of casting aluminium

(1):corrosion resistance
(2):long service life
(3):light weight
(4):ruduce using energy

Galvanized plate


Advangtages:corrosion resistance
long service life

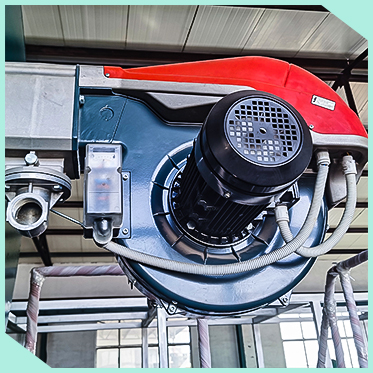

Combustion machine:

the equipment is made of imported material from Italy,supporting burning material such as natural GAS,  heavy oil,  diesel oil.
Installation Instructions

The flowing items must be prepared by the buyers before installation:

     The pulp tank, water tank and draining system should be built of reinforced concrete. Buyer is responsible to guarantee the power and water supply to make sure equipment and controlling cabinets can work normally.
      All necessary craft pipelines (if you can provide your factory area, we can design all pipelines free of charge) and valve,
electric wires, cable, wire slots, bracket and so on. Above should be prepared in advance.
